Caratteristiche

Specificazioni

Applicable Industries: Building Material Shops, Manufacturing Plant, Construction worksÂ , Energy & Mining, Polished Concrete

Showroom Location: Canada, United States, Germany, Viet Nam, Philippines, South Korea

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Bearing, Gearbox, Motor

Condition: New

Automatic Grade: Manual

Voltage: 220V

Power: 7.5HP

Dimension(L*W*H): 145*65*110CM

Weight: 320 kg

Warranty: 1 Year

UNIQUE SELLING POINT: Small Planetary Floor Grinder

Engine Brand: Siemens or WNM

Keyword: Industrial Floor Polishing Machine Wholesale 5.5KW 220V Floor Grinder

Working Speed: 0-1800 RPM

Driven Systems: Round Planetary Gear Box

Application: Polished Concrete

Grinding Discs: Three Plates Planetary

Function: Concrete Floor Grinder

Inverter: 7.5HP

Floor: Concrete Terrazzo Epoxy

Power Source: 3 Phase / 1 Phase

Use: Dry Polishing Wet Polishing

After Warranty Service: Spare parts

Local ServiceÂ Location: Canada, United States, Germany, Viet Nam, Philippines, South Korea

After-sales Service Provided: Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service

Certificazione: CE, ISO9001

Informazioni di base

Certificazione: CE, ISO9001

Termini di pagamento e spedizione

Packaging Details: Wooden case

Descrizione di prodotto

Product Description

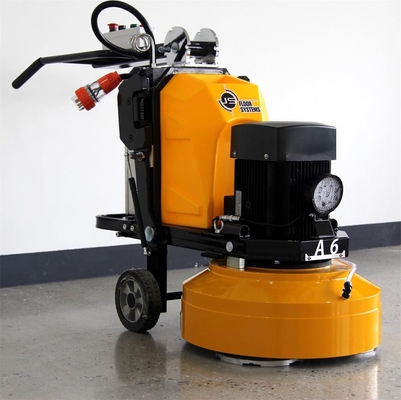

A6 Industrial Floor Polishing Machine Wholesale 5.5KW 220V Floor Grinder

What is a Planetary Grinder?

The base of a planetary grinder consists of a large main disc (the round gear box).

Three or four smaller discs mount to the main disc, and these smaller discs turn at a different speed than the main disc.

The smaller discs all lie along the same plane and make contact with the floor simultaneously, while the larger main disc lies on a different plane and does not make contact with the floor.

A3 and A6 are designed for small jobs, residential projects that only single phase power is available. They get the balance between weight and efficiency, price and performance.

PLANETARY? OR SQUARE HEAD?

Uneven floor, hard floor use square head.

Advantage of square head:

* Less maintenance

* More durable

* Aggressive grinding

Use planetary for high shiny, gloss and smooth surface.

* Shiny finish

* Good at resin polishing

* Polish without gaps and space

* Smoothness

* High efficiency

* Flatness

7*24 on line service

please contact: Ms. Echo

Mobile and whatsapp: +86 136 3149 9577

Email: echo.guan@jiansongsh.com

Model#	A3	A6
Drive	Belt Drive	Gear Drive
Width	535mm	570mm
Disk Size	220mm	260mm
Weight	200KG	280KG
RPM	0~1500	0~1800
Motor	5.5HP	7.5HP / 10HP
AMPS	8	12

Details Images

7.5HP Motor and 24V LED Light

7.5HP Inverter

220V Single Phase Plug

30L Water Tank

2" Dust Port

Grinding Plate

Cast-Aluminium Gear Box

Cast-Aluminium Head Cover

Magnetic Grinding Plate

Rubber Dust Skirt

Timer

Control Box

Wire Holder

D1400 Ride On Planetary Grinder

Ride on grinders can drive the vacuum cleaner simultaneously, this machine is everything you need it to be.

Bigger, heavier and faster.

*1422mm 30HP
*Wet or dry operation with optional water tank

R950 Remote Control Grinder

Remote control grinding and polishing machine provides the highest efficiency and productivity for heavy duty jobs. It can
significantly save both your time and labor cost!

*945mm 30HP
*planetary rotation

PRO850 Self-Propelled Grinder V9 Vacuum Cleaner

Self-propelled floor grinder grinds and polishes at a constant speed and minimizes the risk of operators' mistakes going too slow or too fast. This is not a remote-controlled model but it boasts a similar rate of productivity and ease of use without the remote control price tag. An ideal solution for large commercial projects!

*820mm 25HP

JS700 Walk Behind Floor Grinder

The base of a square head grinder consists of a square gear box.

Square head grinder can cut deeper, can be used for uneven floor, super hard floor, especially good at 16# and 30# metal diamond grinding.
*680mm 15HP

JS250 Concrete Scarifier

Scarifier is one of the most productive pieces of surface pre equipment for heavy removal jobs and to prep for overlay. They remove concrete faster and more aggressively than grinders. *250mm 10HP

C8 27" Burnisher

C8 is one of the most popular model on the market. It’s equipped with a 10HP motor and timing belt. C8 produce a high-gloss finish through high-velocity continual rotations, reduce torque.

*27 inches 10HP

S320 Edger

Designed for edges and tough-to-reach space. This machine creates the perfect profile for edge grinding and polishing.

*320mm 3HP
*edge grinding on the left or right side

Guides & Instructions

How to use the hardener and polishing cream

1. Initial grinding with metal diamond #16 or #30, depends on the floor hardness.
2. Fine grinding with metal diamond #80, #150, #300 in steps.
3. Polish the floor with resin polishing pads #50, to repair the polishing scratch of metal diamonds.
4. Spray the hardener, keep the ground moist for 2 hours. If the floor absorbs the hardener quickly, please spray again.
5. Fine polishing the floor with resin polishing pads #150, #300, #500.
6. Super fine polishing with resin polishing pads #1000, #2000, #3000.
7. Spray the polishing cream after the super fine polishing #1000-3000. Apply the polishing cream with a heavy-duty brush broom, so the floor will be covered with the liquid evenly. The thinner the better.
After the polishing cream dry, use C8 high speed burnisher and DT021 black buffing pads to finish final polishing.

Company Introduction

JS Floor Systems has been established in 2009. Specializing in floor grinders, polishers, burnishers, scrubbers, vacuum cleaners and diamond tools. Our factory locates in Shanghai & Suzhou, China with professional R&D, technical support, production and sales team. Our service and products are appreciated by customers all over the world. JS grinders are available in several different sizes, operation modes and driven systems depending on your demands. JS Floor Systems have the largest range of floor grinders, covering everything from small edge grinder S320 to giant rider grinder D1400, operation modes available in walk behind, ride on, self-propelled and remote control, driven systems in gear construction. JS brand is recommended by customers as the machines are with superior quality, high efficiency, good service and reasonable price. Combined with JS industrial dust collectors, floor scrubbers and diamond tools, we offer a completed floor preparation system which guarantees that you finish the job with the best result and lower cost.

We have got the CE certificates, ISO 9001 and SGS approval. With professional R&D team, high tech Computer Numerical Control Center (CNC) and advantage welding robots, as well as the experienced support and marketing team, we are moving fast in this industry.

Manufacturing Technique

Gear box is the most important part of the grinding machine. With CNC machines, we ensure the high precision of gear box. Aluminum integral casting mold gear box provide the durability of the machine.

To get better quality control of the machine frame, the vacuum chamber and other welding parts, we introduced the welding robot. It highly increase the accuracy, repeat-ability, and throughput.
We’ll keep our studying and exploring in new technology to achieve continuous progress.

Gear box workshop and Showroom

Why Choose Us

One year warranty and life-time maintenance & spare parts service is provided.

JS is recommended by several of the largest flooring suppliers and concrete producers in the world.

Polished concrete training

What we make with JS floor grinders

Packing&Shipping

All the machines are well installed and packed with accessories in crate.

FAQ

Q1: Are you trading company or manufacturer?
A1: We are manufacturer and have factories in Shanghai and Suzhou, China. All the machines are shipped from Shanghai. Welcome to visit us!

Q2: Do you also produce diamond tools?
A2: Yes we produce both machines and diamond grinding / polishing pads.

Q3: Will the grinders come with resin pad holders?
A3: Yes, all the grinders include the magnet plates, resin pad holder, tool box and necessary accessories,

Q4: Can JS grinders be use for polishing?
A4: Yes of course. They can do both grinding and polishing, the RPM is 0-1800.

Q5: How long to produce?
A5: It depends on the models and qty, usually 3-15 days.
