Caratteristiche

Specificazioni

Applicable Industries: Construction worksÂ

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 6 months

Core Components: Engine, Bearing

Condition: New

Cutting Depth: 16CM

Rotary Speed: 3600 Rpm

Voltage: 220/380v

Power: 9.0-13.0HP

Weight: 102KG

Dimension(L*W*H): 95*59*90 CM

Power Source: GX390/Loncin G420F/Diesel,FS186F

Running Speed: Driving: Handle Push

Warranty: 6 months

UNIQUE SELLING POINT: Long lifetime

Product name: 13HP concrete cutter floor saw equipment

Engine Type: air-cooled,single cylinder,4-stroke

Water Tank Capacity: 30L

Driving Mode: manual push

G.W.: 120KG

Max Cutting Depth: 16cm

Color: yellow,black or customized

Blade size: 350-500mm/12"-16"

Application: Road construction equipment 16" concrete cutter price

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: None

After-sales Service Provided: Video technical support, Online support

Certificazione: ISO CE

Informazioni di base

Certificazione: ISO CE

Termini di pagamento e spedizione

Packaging Details: Export standard package, internal stretch film, Professional beautiful carton packaging, fumigation wooden case, wooden pallet, or customized 13HP concrete cutter floor saw equipment

Supply Ability: 2000 Set/Sets per Month

Descrizione di prodotto

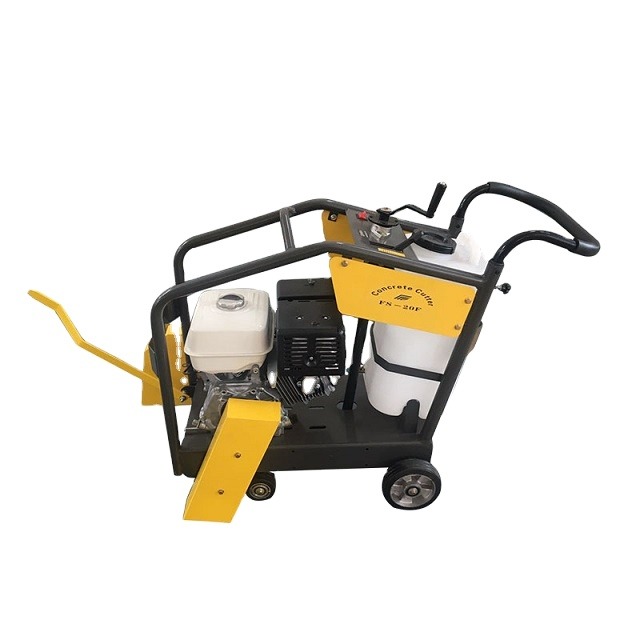

13HP HONDA concrete cutter floor saw equipment

Product description

Road concrete cutting machine is widely used in building industry, municipal projects and construction works. It is not only used to repair the road or asphalt pavement, but also used to cut concrete, brick, masonry, asphalt, tile and other solid materials.
According to different power supply, they are divided into electric cutters, Gasoline cutters ,diesel road cutters.

Mode	FS-22FH	FS-22FL	FS-22FD
Engine type	air-cooled,single cylinder,4-stroke
Engine	Honda GX390	Loncin G420F	Diesel,FS186F
Power(HP)	13	14	9
N.W.(kg)	102
G.W.(kg)	110
Max,cutting depth(cm)	16
Driving mode	Manual push
Water tank capacity(L)	50
Blade size(cm)	40-45
Package size(cm)	9559101

Feature

1.Elevating device manual locked,which ensures the same cutting seam depth.

2.Big volume water tank connets with the hose to cool the blade and extend the blade’s using life.

3.Direction guiding system adopts spring type press way and guidance accuracy.

4.Smooth cutting and directional stability is achieved due to the optimum position of the machines center of gravity.

5.Ergonomically designed,height adjustable handle with comfortable grips.

6.Hinged front,lift-up blade guard is designed to provide easy blade replacement.

7.Rustless water tank provides an optimun flow.

8.The elevation equipment is manually locked which will make the depth of edge consistent.

9.Throttle control as standard part.

Our workshop

WUXI FAST Machinery Technology CO.,LTD located in wuxi city,Jiangsu Province AS the manufacturer of construction machinery, mainly include tamping rammer, plate compactor, concrete mixer,concret cutter,power trowel, road roller,mini excavator etc.

FAST market mainly include: middle east, africa, south africa, india, east asia, latin america.

Quality and credit are our company soul! Hope to establish long time and stable relationship with world distributor and end user.
