Machinery Repair Shops Gasoline Ride On Concrete Screeding Power Trowel Machine For Sale

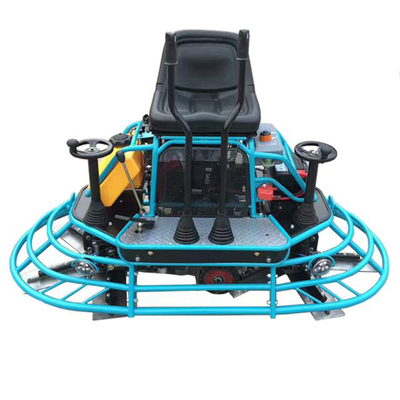

Car mounted polisher

1, Application of car polisher

It is mainly used for raising slurry, compacting, smoothing and smoothing of concrete ground. Compared with the hand-held polishing machine, it has high efficiency.

2, Overview of car polisher:

1. Driving operation reduces labor intensity and work efficiency.

2. Two plastering plates can be installed at the same time for slurry lifting.

3. There are 8 blades in both directions, and the dead weight is 400kg, which has good compaction effect on the ground.

4. The mechanical steering system is sensitive, easy and comfortable to operate.

5. It has a variable gear, high-grade smear speed up to 160 rpm, so that the finishing is fast and the effect is good, low-grade can make the plastering plate more powerful.

6. Equipped with high-power electric starting engine to provide power.

7. There is a safety cut-off switch, which can turn off the engine to ensure the safety of Bao.

8. Control screw can adjust blade angle.

9. Sprinkler and lighting design can facilitate construction.

10. It is equipped with lifting walking wheel, which is convenient for changing the smear, changing the wiping plate and walking.

11. Advantages of this machine: quality, effect, efficiency, price and after-sales.

3, Driving is the technical parameters of the polishing machine:

model

Driving type

Working power

24hp/3600rpm

Operation mode driving

Tank volume

20L

Working width 2000mm

The quantity of lubricating oil is 1.8L

Working speed 0-135rpm

Fuel consumption 313g / kWh

Number of spatulas 8

Total length: 1940mm

Spatula size 310x150mm

Total width 990 mm

Fixed hole spacing 4.75 in

Total height 1050 mm

Package size 1950 x 1010 x 1070 mm

Model gx690

type

Gasoline engine, air cooled, 4-stroke, OHV, two cylinder
